Product introduction

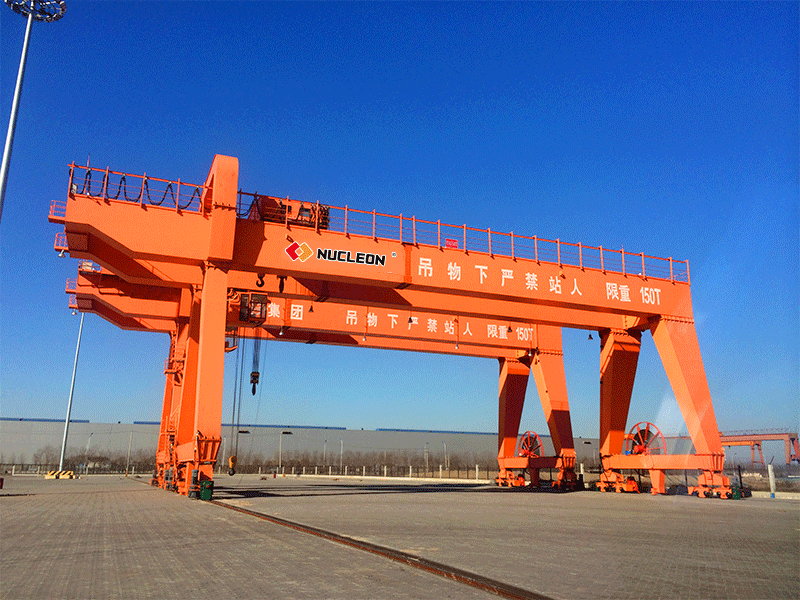

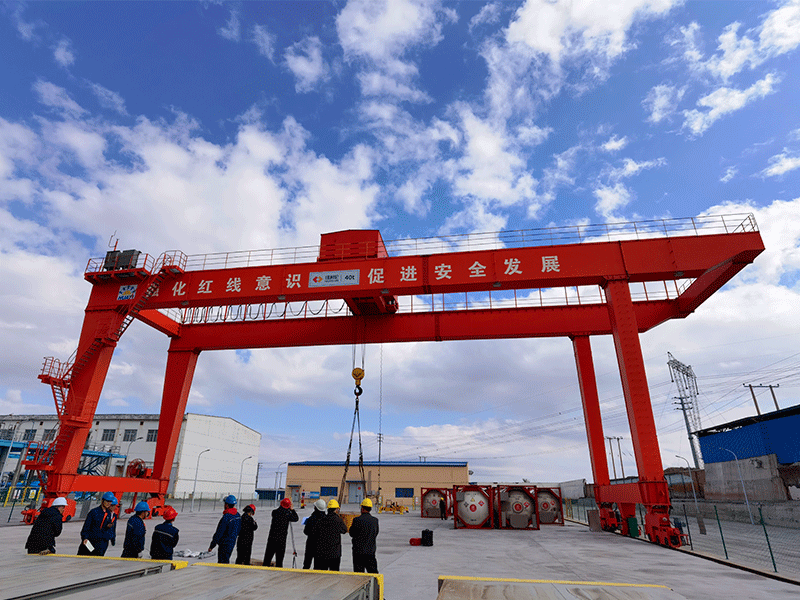

The universal gantry crane is a mature product promoted by our company for many years. It has the advantages of durability, safety and reliability, and is widely used. It is suitable for the lifting and handling of objects in outdoor freight yards, w
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Hoisting mechanism of the universal gantry crane adopts the classic parallel axis, the traveling mechanism of crab adopts the low-speed shaft centralized driving structure, and the traveling mechanism of trolley adopts the structure of independent driving on both sides. The wheel group is provided with various structures according to different wheel pressures of the crane.
There are A-shaped, U-shaped, L-shaped, O-shaped and C-shaped cranes according to their appearance; According to the jib type, the crane can be divided into non-jib, single-jib and double-jib; According to the number of main beams, it can be divided into single main beam and double main beam; According to the structural form of steel structure, it can be divided into box type, truss type and upper box and lower frame type; According to the operation mode, it is divided into ground operation, air operation and remote control operation.
Product Features:
(1)Strong rigidity of steel structure, large margin, solid and durable.
(2)Complete protection device, safe and reliable.
(3)Easy control, convenient operation and maintenance.
(4)Wide application, high versatility and good maintainability.
Performance Parameters:
Lifting capacity: 5t～500t
Span: 5m～80m
Lifting height: 5m～50m
Work level: A3-A8
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
