Intelligent lifting goose-neck jib crane

Product introduction

Intelligent lifting goose-neck jib crane is the Nucleon-developed special lifting product with intelligent control as the core and servo motor drive system combined with precision planetary gear reducer. It has the features of excellent performance,

Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design

Get quotes Online consulting

Home > Product > New-design Bridge Cranes > New-design Jib Crane

Product Details:

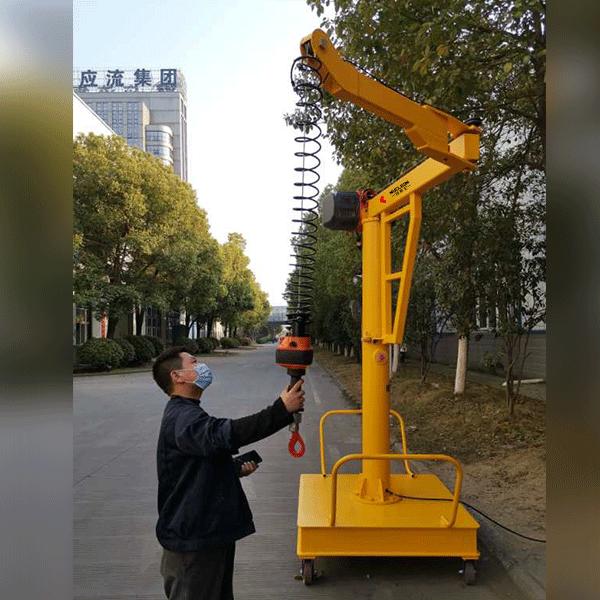

Intelligent lifting goose-neck jib crane is a kind of jib crane whose jib can be folded and whose lifting mechanism is an intelligent servo hoist. It is mainly composed of a column, a main jib, an auxiliary jib and an intelligent servo electric hoist. The main jib of the crane can rotate around the column, and the auxiliary jib can rotate around the main jib, but the gyration is manual. The picking device of the electric hoist can be equipped with slings, clamps and suction cups, and the control can be equipped with coaxial pressure handle, coaxial sliding handle, full touch handle, continuous variable transmission (CVT) handle, wireless remote controller, etc. According to different operating conditions, various functions can be set through the expansion port to realize customized services.

Product Features:

(1)Easy installation and operation, free maintenance.

(2)Flexibly-switched hand hold mode and suspension mode

(3)Stable lifting and low noise

(4)Double limit ensures safety and reliability

(5)Diversified control and good matching

(6)Strong human-machine interaction and good expansibility

Product Features:

(1)Easy installation and operation, free maintenance.

(2)Flexibly-switched hand hold mode and suspension mode

(3)Stable lifting and low noise

(4)Double limit ensures safety and reliability

(5)Diversified control and good matching

(6)Strong human-machine interaction and good expansibility

(7)Small blind area of hook and large coverage

(8)Gyration and hoist operation integrates "two in one", realizing high handling efficiency

(9)Controllable position of the lifting point and accurate positioning

(10) High working level, adjustable speed and fast operation response

Performance Parameters:

Lifting capacity: 80kg～600kg

Radius of gyration: 2.5m～4m

Lifting height: 1.75m～3.5m

Maximum lifting speed (hand hold mode):

7.5m/min ～ 40m/min (no load);

6.8m/min ～ 30m / min (full load)

Maximum lifting speed (suspension mode):

6.75m/min～36m/min(no load）;

6.08m/min～27m/min(full load)

Rated power: 0.75KW ~ 2KW

Noise: ≤ 60dB

Intelligent functions—— Nucleon is a supplier of complete solutions for new Chinese cranes and material transportation

Inching movement
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
Zero speed hover
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Impact-proof
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof limit impact-proof of the crane, which meets various needs of customers for products.
Electric anti-sway function
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.

Regional load limit
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Speed expansion function
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
Multi-hook coordination
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
Multi-trolley synchronization
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
Wireless expansion
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
